100-150kg/H PVC Pelletizing Twin Screw Extruder Machine 600rpm Speed SJSL51

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: Pvc Cable Shoe Sole Barrel Diameter: 51mm Screw Material: 38CrMoAL Nit-ridged Steel For Anti Corrsion Screw Diameter: 50.5mm L/D: 44:1 Output: 100-150kg/h Screw Speed: 600rpm SJSL51 100-150kg/h PVC Pelletizing Line Twin Screw Extruder Machine  Air Cooling Die Face PVC Pelletizing Machine Application Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black Degradable master batch: PE,...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: Pvc Cable Shoe Sole
Barrel Diameter: 51mm Screw Material: 38CrMoAL Nit-ridged Steel For Anti Corrsion
Screw Diameter: 50.5mm L/D: 44:1
Output: 100-150kg/h Screw Speed: 600rpm

SJSL51 100-150kg/h PVC Pelletizing Line Twin Screw Extruder Machine

 Air Cooling Die Face PVC Pelletizing Machine Application

Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black

Degradable master batch: PE, PS etc. + starch, additive etc

Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.

Quick details
Power:55kw
Screw diameter:50.5mm

Barrel diameter:51mm

Screw & barrel material:38CrMoAl
Output:100-150kg/h
Cutting way: air cooling die face for pvc material
Warranty:one year
Lead time:45 days after deposit

Heating power:26kw

Heating zones: 9 zones

Application: PVC cable material, PVC hose material, PVC shoe sole material etc

 World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

 Scope of Supply

No. Contents Unit Quantity Marks
1 High speed mixer set 1
2 Screw loader machine set 1
3 Twin screw extrusion system set 1
3.1 Feeding system set 1 0.75kw
3.2 SJ-51Twin screw extruder set 1 45kw, 44:1
3.3 Vacuum venting system set 1 1.5kw
3.4 Water cycling system set 1 0.55kw
3.5 Automatic screen changer set 1 1.5kw
4 Electric cabinet set 1
5 Air-cooling auxiliary system set 1
5.1 Die head set 1
5.2 Face cutter set 1 1.5kw
5.3 One-stage conveying system set 1 4kw
5.4 Product silo set 1 4kw
6 Documents set 1

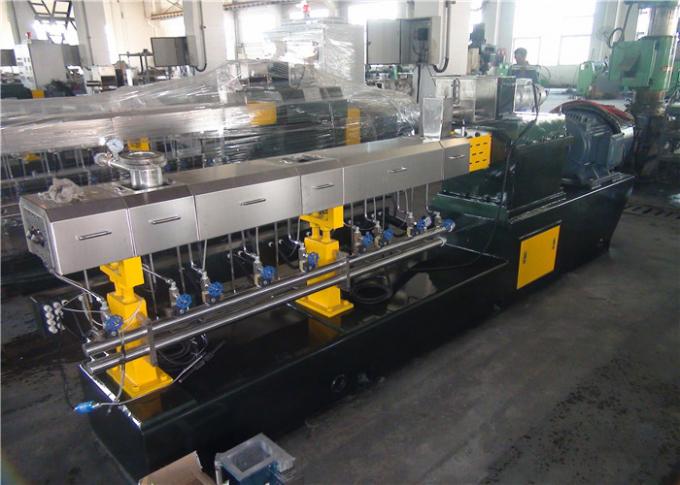

 Photo of SJSL51 100-150kg/h Twin Screw Extruder

100-150kg/H PVC Pelletizing Twin Screw Extruder Machine 600rpm Speed SJSL51

Main technical data of various model of twin screw extruder pelleitizing machine

Model type Series Barrel Diameter (mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
SJSL20 A/B 22 21.7 32-44 500/600 4/5.5kw 30/30
SJSL-36 A/B/C/D 36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
SJSL-51 A/B/C/D 51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
SJSL-65 A/B/C/D 63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
SJSL-75 A/B/C/D 72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
SJSL-95 A/B/C/D 94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
SJSL-135 A/B/C/D 135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500


Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
