50-80kg / H Plastic Extruder PET Pelletizing Machine Water Strand Type

Short Description:

Detailed Product Description Screw Design: Twin Screw Extruder Application: Pet Recycled Bottle Flake Vacumm: 3kw Screw Diameter: 50.5mm Screw Material: W6Mo5Cr4V2 Motor: 55kw Rpm: 300 Capacity: 50-80kg/h 50-80kg/h Plastic Extruder Pet Recycling Granulating Line PET Pelletizing Machine  Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, ant...


Product Detail

Product Tags

Detailed Product Description
Screw Design: Twin Screw Extruder Application: Pet Recycled Bottle Flake
Vacumm: 3kw Screw Diameter: 50.5mm
Screw Material: W6Mo5Cr4V2 Motor: 55kw
Rpm: 300 Capacity: 50-80kg/h

50-80kg/h Plastic Extruder Pet Recycling Granulating Line PET Pelletizing Machine

 Nanjing Yongjie started to make water strand twin screw extruder pelletizing machine since 2001,our twin screw extruders are widely used for enforcing modification, degradab le master batch, anti-flame master batch etc.

 Water strand plastic pelletizing machine application

Reinforcement and modification: filling glass fiber or carbon fiber for :P P, PA, PBT, ABS, AS, POM, PPS, PET etc.

Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.

Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA etc.

Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material, crosslinking material, cable coating material, thermal contraction material etc.

Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes filter tip material, acetable fiber material etc.

Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.

Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc

Special functional masterbatch: double protection masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal insulation masterbatch, hypothermia material etc

The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.

 Quick details of the machine

Diameter:50.5mm

L/D:44:1

Direction of rotation: Co-rotating

Screw & elements: W6Mo5Cr4V2 (6542#) high speed tool steel that had been treated by the vacuum hardening process with the hardness of the surface is HRC58-62.Molding through dedicated grinding machine. The cleanliness is much better than products out of traditional process.

Core axle: High quality alloy steel 40CrNiMo that with high tenacity and durability. It had been treated by the hardening and tempering process.

1). Structure: The first section works for main feeding, the fifth section is set up for venting naturally and the tenth section is set up for vacuum venting, the others are blocked.

2). Material: The material of the barrel is made of 45forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth and abrasion resistant. The hardness is HRC60-64.

3). Heating: Adopt multiple step format electric heating. The first and the second zone and the machine head zone are cast copper heater and others are cast aluminum heater. The total heating power is 28kw and the max heating capacity every section can reach500℃.

4). Cooling: Adopt soft water cooling system in the barrel and tap water cooling way outside barrel. The circulation pipes are made of stainless steel and the water in flow regulating valves are stainless valves.

The brand of electromagnetic valve is DANFOSS.

5). Length: 190*11=2090mm

 Scope of supply:

No. Contents Unit Quantity Marks
1 Twin screw extrusion system set 1
1.1 Feeding system set 1 0.75kw
1.2 SJ-65Twin screw extruder set 1 45kw, 36:1
1.3 Vacuum venting system set 2 1.5kw
1.4 Water cycling system set 1 0.55kw
1.5 Automatic screen changer set 1 1.5kw
2 Electric cabinet set 1
3 Water-strand auxiliary system set 1
3.1 Die head set 1
3.2 Water trough set 1 4M
3.3 Dryer set 2 1.5kw
3.4 Pelletizer set 1 100kg/h, 2.2kw
3.5 Product silo set 1
4 Documents set 1

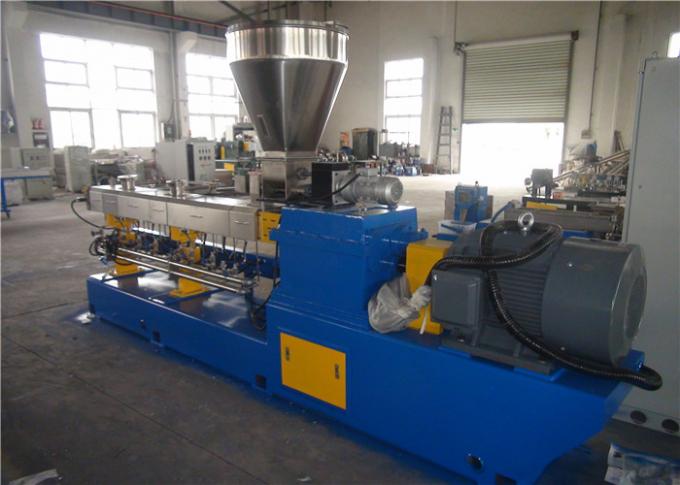

 Photos of 50-80kg/h SJSL51A Pet Recycling Granulating Production Line PET Pelletizing Machine

50-80kg / H Plastic Extruder PET Pelletizing Machine Water Strand Type

 Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
