2.2kw Dehydrator Water Ring Pelletizer LLDPE Extruder Machine 30-100kg/H Kapasiteit
Skroef ûntwerp: | Twin Screw Extruder | Dehydrator: | 2,2 kw |
---|---|---|---|
Cutting Way: | Wetterring foar masterbatch mei hege filler | Trochrintiid: | 45 dagen nei boarchsom |
Screw Diameter: | 35.6mm | Inverter merk: | ABB |
Motor: | 18,5 kw | Motormerk: | Siemens Beide |
2.2kw Dehydrator Water Ring Pelletizer Filler Masterbatch Machine 30-100kg / H Kapasiteit
Wetterring pelletizer applikaasje:
1. PE, Eva etc + Caco3, talk, Tio92, filling modifikaasje en koalstof swart etc.
2. LDPE, HDPE, LLDPE, MDPE, drivepipe, isolaasje materiaal, crosslinking materiaal, kabel coating materiaal, termyske kontraktion pipe materiaal ensfh.
3. PPR-pipe-ferbiningen, PE-crosslinking-buismateriaal, TPR, TPU-thermoplastyske elastomer, EVA en hot melt adhesive ensfh.
4. PE, ABS, PS, EVA masterbatch ensfh.
5. ABS, EVA flaming retarding masterbatch ensfh.
6. PE, PP, PS filling en biodegradable masterbatch, ensfh.
Fluch details fan sjsl36 wetterring pelletizer
Skroef diameter: 35.6mm
Skroef materiaal: W6Mo5Cr4V2
Barrel diameter: 36mm
Barrel materiaal: W6Mo5Cr4V2
Motor macht: 15kw
Motormerk: SIEMENS
L/D:44:1
Utfier: 30-80 kg / h
Interlock kontrôle
1).De extruder motor wurdt opsetten dehjoeddeistige overloadberikkechain shutdown beskermingmei elektryske kontrôle kabinet.
2).It kontrôlesysteem fan 'e haadmasinemotoris ynsletten meikontrôle systeem fan feeder motoras in manier fan beskerming ûnderling.
3).Fersnellingsbakenlubrication systeembinne ynsletten foar beskerming.
4).De extruder wurdt opsetten dedruk overloadberikkechain shutdown beskermingmei elektryske kontrôle kabinet.
5).De wichtichste motoris ferbûn meide nylon pin fan oerdracht Fersnellingsbaksa as te snije ôf de nylon pin doe't koppel is overload.
Omfang fan oanbod fan sjsl36 wetter ring pelletizer
Nee. | Ynhâld | Ienheid | Kwantiteit | Marks |
1 | Twin screw extrusion systeem | set | 1 | |
1.1 | Hege snelheid mixer | set | 1 | 50L |
1.2 | Main feeding systeem | set | 1 | 0,75 kW |
1.3 | SJ36 twin screw extruder | set | 1 | 18.5KW, 44:1 |
1.4 | Vacuum venting systeem | set | 1 | 0,75 kW |
1.5 | Wetter recycling systeem | set | 1 | 0,55 kW |
1.6 | Hydraulyske skermwikseler | set | 1 | 0,75 kW |
2 | Elektryske kabinet | set | 1 | |
3 | Wetter-ring assembly systeem | set | 1 | |
3.1 | De kop | set | 1 | |
3.2 | Face cutter | set | 1 | 1,5 kW |
3.3 | Water-ring cutting cover | set | 1 | |
3.4 | Sintrifugaal dehydrator | set | 1 | 2,2 kW, 3 kW |
3.5 | Produksje container | set | 1 | 3 kW |
4 | Dokuminten | set | 1 |

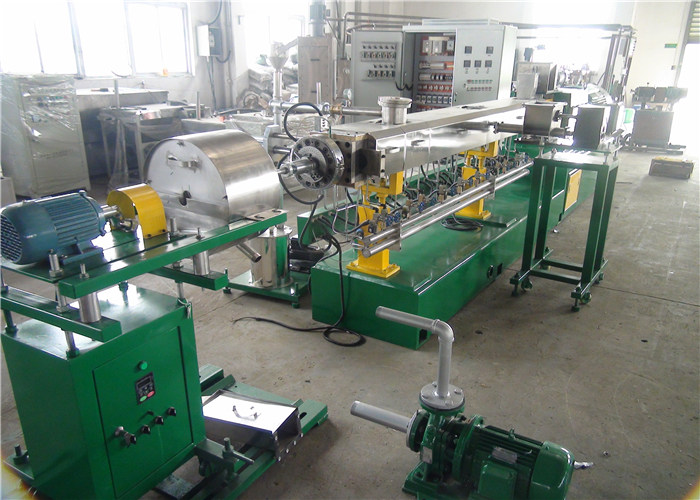

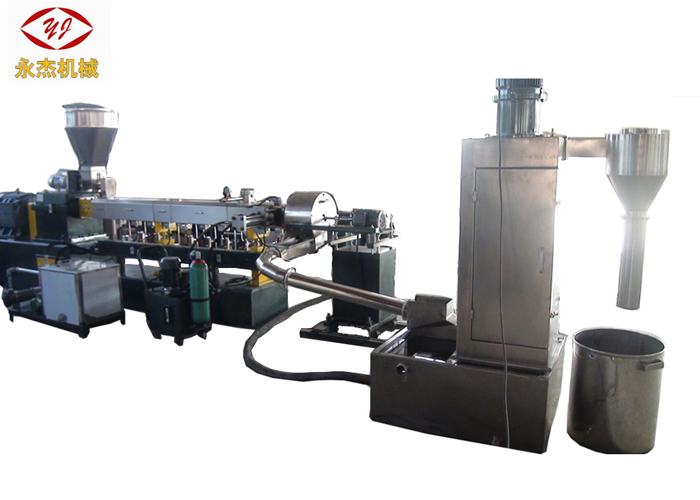

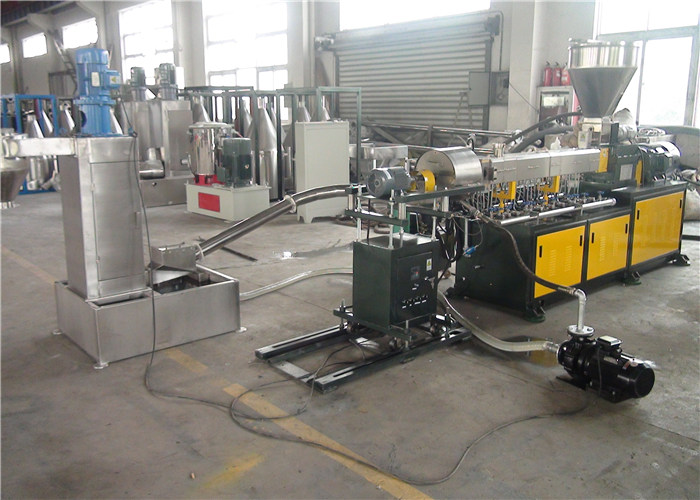

Foto fan masine
Main Technyske Details fan Plastic Pelletizing Machine Models
Model type | Searje | Barrel Diameter (mm) | Skroef diameter (mm) | Skroef L/D | schroefsnelheid n (r/min) | Main motor macht (Kw) | Schroefmoment T(Nm) | Torque rating (T/A3) | Typyske produksjekapasiteit (kg/h) |
SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5,5 kw | 30/30 | ||
SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4,6-8,3 | 30-120 |
SJSL-51 | A/B/C/D | 51 | 50,5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4,8-8,5 | 180-750 |
SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4,6-8,7 | 300-1200 |
SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4,7-8,7 | 700-2500 |
SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
