0-600rpm Revolutions Speed Master Batch Manufacturing Machine Me kahi ʻāpana hānai
Hanai: | Pohō 'akomi ma ka 'ōnaehana hānai kaumaha | Noi: | ʻO nā Pellets Plastic |
---|---|---|---|
ʻEnekinia o nā ʻāina ʻē: | Loaʻa no ka hoʻokomo ʻana a me ke kau ʻana | Barela anawaena: | 71.8mm |
kaʻa kaʻa: | 132kw | Kaha: | 500-1000kg/h |
L/D: | 48:1 | Mea o ka Barela: | 45#ke kila forged |
SJSL75B Pohō i loko o ke kaumaha Water Ring PelletizerMīkini Hana Hui Pūʻali
Nā kikoʻī wikiwiki
ʻAi: poho i ke kaumaha, hānai ʻakomi.
Mana: 132kw
Mea wili:W6Mo5Cr4V2
ʻO ka pahu pahu:45# kila forged me ka 101 abrasion-resistant alloy 101 (Ni-Fe-Cr-W) i loko o ia laumā.
a me ka abrasion.ʻO ka paʻakikī HRC60-64.
L/D:48:1
Output: 500-1000kg / h e like me nā ʻano mea like ʻole, ke ʻano a me ka ʻenehana o ka hana etc.
Nā hoʻololi: 0-600rpm;
Lakiō hoemi: i = 2.5:1

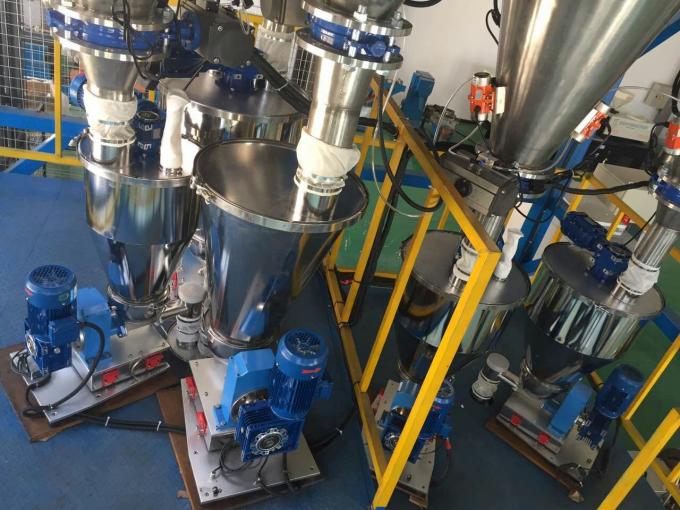

ʻO ka poho i nā kikoʻī hānai kaumaha
1) i hoʻolako ʻia me kahi ʻāpana feeder i hoʻokomo ʻia ma ke kahua paona, me ka sensor kaumaha kiʻekiʻe i hana ʻia e United States Toledo,
2) ʻO ke kaupaona ʻana o ka plastform ka unahi huinaha me ka mea ss304;
3) nā ʻāpana āpau i hoʻopili ʻia me ka mea maka i hana ʻia me SS304, a me ka ʻāpana hānai maʻalahi no ka loli wikiwiki a maʻalahi hoʻi.4) ʻaʻohe mea hoʻoheheʻe pōpō make, hoʻolako ʻia me ka hui ʻana;
5) Ka mana kaʻa: 1.5KW, lākiō wikiwiki: 11: 1, me ka hoʻomalu wikiwiki inverter;
6) Microchip ka mea hoʻoponopono e hōʻoia i ka hānai pono kiʻekiʻe, hiki i ka pololei o ka hānai ʻana ke hiki i ± 0.5%.Ka mana maʻamau: 380V, 3-phase, 50 Hz;
7) me ka hopper e hōʻoia i ka mea i loko o ka pahu e like me ka hoʻohālikelike ʻia;
8) lako me ke kiʻekiʻe a me ka haʻahaʻa pae mika.
Ka laulā o ka lako
ʻAʻole. | ʻIkepili | Unite | Ka nui | Mākaʻikaʻi |
1 | Mea hui kiʻekiʻe | hoʻonoho | 1 | 500L |
2 | Mīkini hoʻoheheʻe ʻia | hoʻonoho | 1 | 1.5kw |
3 | Pūnaehana hoʻoheheʻe māhoe māhoe | hoʻonoho | 1 | |
3.1 | Pūnaehana hānai | hoʻonoho | 1 | 1.5kw |
3.2 | SJ-75B Twin screw extruder | hoʻonoho | 1 | 132kw, 48:1 |
3.3 | Pūnaehana hoʻoheheʻe ʻana | hoʻonoho | 1 | 2.2kw |
3.4 | Pūnaehana holo kaʻa wai | hoʻonoho | 1 | 0.55kw |
3.5 | Mea hoʻololi pale ʻakomi | hoʻonoho | 1 | 1.5kw |
4 | Keena uila | hoʻonoho | 1 | |
5 | Mīkini kōkua apo wai | hoʻonoho | 1 | |
5.1 | Poʻo make apo wai | hoʻonoho | 1 | |
5.2 | ʻOki maka me ke ala alakaʻi me ka uhi | hoʻonoho | 1 | 1.5KW |
5.3 | Centrifugal dehydrator | hoʻonoho | 1 | 5.5KW |
5.4 | kānana haʻalulu | hoʻonoho | 1 | 0.4KW |
5.5 | Pahu waihona | hoʻonoho | 1 | |
6 | Palapala | hoʻonoho | 1 |

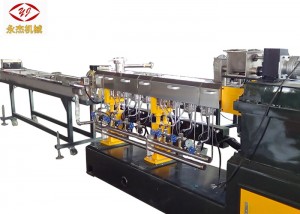

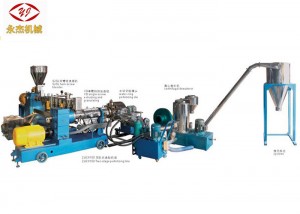

Kiʻi o SJSL75B Filler Masterbatch Machine
ʻIke ʻenehana nui o nā ʻano hoʻohālike like ʻole o ka mīkini pelletizing twin screw extruder
ʻAno hoʻohālike | moʻo | Ka Anawaena Barela (mm) | Ka Anawaena Uila (mm) | Screw L/D | ka māmā holo n(r/min) | Ka mana kaʻa nui (Kw) | T(Nm) | Ka helu ʻana o ka Torque (T/A3) | Ka mana hana maʻamau (kg/h) |
SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Pōkole Hui
Nanjing Yongjie Qixin Machinery Equipment Co., LtdHoʻokumu ʻia i ka makahiki 2001, e uhi ana i kahi ʻāpana o 20,000 square meters ma ko mākou ʻāina ponoʻī, me ka puka ʻana o ka mīkini 20sets i kēlā me kēia mahina.Hoʻopaʻa ʻia kā mākou hale hana iā CE, ISO9001: 2008.
Hoʻokumu ka hui i ka noiʻi, hoʻomohala a me ka hana ʻana i nā huahana "pae kiʻekiʻe, pololei, ʻoi loa ka maʻalahi o ka hui pū ʻana me ka "cordwood" twin screw extruder, single screw extruder, ʻelua mau pae extruder a me nā mīkini pelletizing plastik.Ua hoʻolako mākou i nā mea kūʻai aku i nā huahana papa mua me ka "torque ikaika, hana kiʻekiʻe, mālama i ka ikehu a me nā huahana palekana kaiapuni.Ua hoʻokō maikaʻi ʻia ka ʻōnaehana hoʻolālā kūikawā no ka "hoʻokahi papa hana" ma nā ʻano huahana he nui, a hoʻohana nui ʻia i ka pā alumini composite, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
