Kab rov tav PE Pelletizing Tshuab, Yas Reprocessing Tshuab 250kw Fais Fab
| Ntsia Hlau Tsim: | Twin Ntsia Hlau Extruder | Hom yas: | Recycling Pet Bottle Flake |
|---|---|---|---|
| Daim ntawv thov: | Tsiaj Lub raj mis Flake Tsawg dua 20mm | Cov zis: | 500-600kg / h |
| Vacumm: | Lub cev muaj zog, 7.5kw | Ntsia Hlau Diameter: | 92mm ua |
| L/D: | 36:1 ib | Cua sov Zone: | 9 Zones |

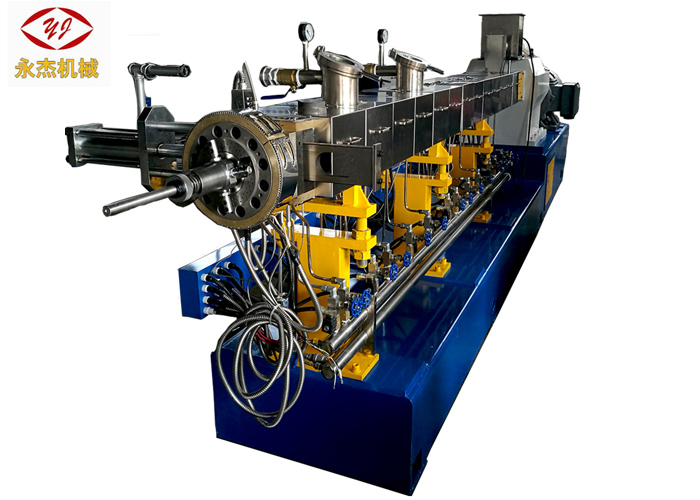

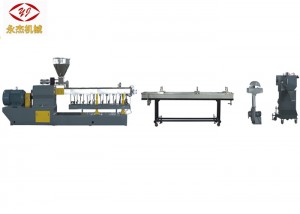

500-600kg / h Tsiaj Twin Ntsia Hlau Extruder PET Pelletizing Tshuab
Nanjing Yongjie pib ua dej strand ntxaib ntsia hlau extruder pelletizing tshuab txij thaum 2001, peb ntxaib ntsia hlau extruders yog dav siv rautswj kev hloov kho, degradab le master batch, anti-flame master batch thiab lwm yam.
Dej strand yas pelletizing tshuab daim ntawv thov
Kev txhawb zog thiab kev hloov kho:filling iav fiber los yog carbon fiber rau
P, PA, PBT, ABS, AS, POM, PPS, PET thiab lwm yam.
Compounding thiab blending:PC + ABS, PA, + ABS, PP + EPDM, PA + EPDM, PP + SBS, thiab lwm yam.
Filling kev hloov kho:Caco3, Talc, Titanium, carbon dub rau PVC, PE, PP, EVA thiab lwm yam.
Cov khoom siv cable:LDE, HDPE, LLDPE, MDPE, tsav yeeb nkab, cov khoom siv rwb thaiv tsev, cov khoom sib txuas, cov khoom siv cable, cov khoom siv thermal contraction thiab lwm yam.
Khoom siv tshwj xeeb:PPR yeeb nkab compounds, PE crosslinking tube khoom, luam yeeb lim cov khoom, acetable fiber ntau thiab lwm yam.
Thick xim masterbatch:PE, ABS, PS, EVA, PET, PP + pigment + additives, thiab lwm yam.
Flaming retarding khoom:PVC, PP, PA, ABS, EVA, PBT + hluav taws kub retardant, thiab lwm yam
Tshwj xeeb ua haujlwm masterbatch:ob chav tiv thaiv masterbatch, antistatic masterbatch, anti-bacteria masterbatch, thermal rwb thaiv tsev masterbatch, hypothermia khoom thiab lwm yam
Biodegradable masterbatch:PP, PE, PS + starch + additives thiab lwm yam.
Cov ntsiab lus ceev ntawm lub tshuab
Screw txoj kab uas hla: 92mm
Lub zog: 250kw
chim & ntsia hlau khoom: W6Mo5Cr4V2 kev kub ceev cuab yeej steel
L/D: 36:1
Ntev: 360 * 9 ntu = 3240mm
Tshwj xeeb ntsia hlau array nrog hnav shear ntawm cov khoom flake, super fais fab lub tshuab nqus tsev kom txo IV poob siab tshaj plaws.
Scope ntawm kev muab khoom:
| Tsis muaj. | Cov ntsiab lus | Chav tsev | Ntau | Cov cim |
| 1 | Ntsia hlau pub tshuab | teeb | 1 | 2.2 kwm |
| 2 | Twin ntsia hlau extrusion system | teeb | 1 | |
| 2.1 | Pub noj system | teeb | 1 | 4 kwv |
| 2.2 | SJ-95 Twin ntsia hlau extruder | teeb | 250 | qw, 36:1 |
| 2.3 | Melt twj | teeb | 1 | 30 kwv |
| 2.4 | Lub tshuab nqus tsev vacuum | teeb | 1 | 7.5 kwm |
| 2.5 | Dej cycling system | teeb | 1 | 3 kwv |
| 2.6 | Tsis siv neeg hydraulic screen changer | teeb | 1 | 2.2 kwm |
| 3 | Hluav taws xob txee | teeb | 1 | PID |
| 4 | Dej strand auxiliary system | teeb | 1 | |
| 4.1 | Tuag taub hau | teeb | 1 | |
| 4.2 | Lub pas dej | teeb | 1 | 5M |
| 4.3 | Pelletizer | teeb | 17.5 Nws | KW |
| 4.4 | Centrifugal dehydrator | teeb | 1 | 11 kwv |
| 4.5 | Vibrator | teeb | 1 | 0.9 kwm |
| 4.6 | Ib theem cua kis system | teeb | 1 | 5.5 kwv |
| 5 | Cov khoom seem | teeb | 1 | |
| 6 | Cov ntaub ntawv | teeb | 1 |
Lub tuam txhab luv
Nanjing Yongjie Qixin Machinery Equipment Co., LtdFounded hauv 2001, npog thaj tsam ntawm 20,000 square metres ntawm peb tus kheej thaj av, nrog cov khoom siv txhua hli ntawm tshuab 20sets.Peb lub Hoobkas muaj ntawv pov thawj rau CE, ISO9001: 2008.Lub tuam txhab tsom rau kev tshawb fawb, kev tsim kho thiab tsim khoom ntawm "theem siab, raug, cov khoom lag luam zoo heev uas sib luag co-rotating "cordwood" ntxaib ntsia hlau extruder, ib qho ntsia hlau extruder, ob theem extruders thiab tsis siv neeg yas pelletizing tshuab.Peb tau muab cov neeg siv khoom ua ntej cov khoom lag luam nrog "muaj zog torque, ntau lawm, kev txuag hluav taws xob thiab cov khoom tiv thaiv ib puag ncig.Cov qauv tsim tshwj xeeb ntsia hlau tau pom zoo rau "ib kauj ruam shaping" ntawm ntau yam khoom, thiab yog siv dav hauv aluminium composite phaj, XPS foaming phaj, WP phaj, PP, PE daim ntawv kev lag luam, thiab lwm yam.
QAULITY yog muab tso rau tom ntej , thiab peb lub Hoobkas muaj ntawv pov thawj rau ISO 9001: 2008 Daim ntawv pov thawj thiab CE.
