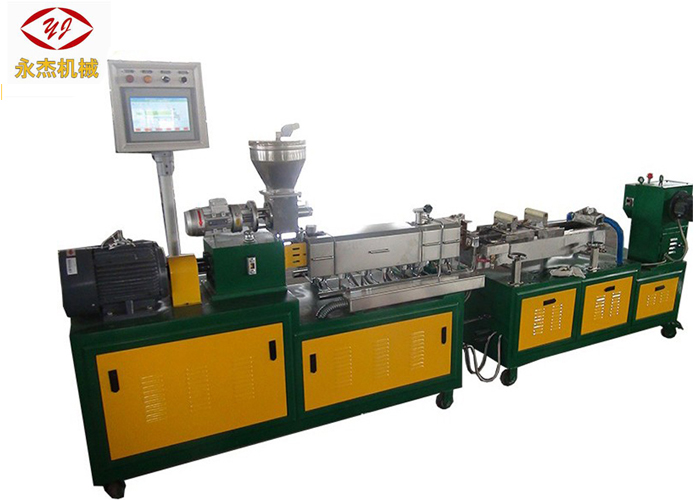

20mm Baja Nitridged Mini Twin Screw Extruder Machine 1000mm Barrel Diameter
| Pelletizer: | 0,75 kw | Diameter sekrup: | Baja Nitridge 21,7 mm |
|---|---|---|---|
| Bahan Screw: | 38CrMoAL | Bahan Bakul: | 38 Baja Nitridge CrMoAL |
| Diameter barel: | 22 mm | Banyu Bath Length: | 1000 mm |
| Kapasitas: | 2-15kg / jam | Pengering: | 0,26kw |
20mm Nitridged Steel Mini Extruder Twin Screw Extruder Machine Mesin Pelet Plastik
Yongjie laboratorium mini extruder SJSL20 digunakake digunakake ing antarane para pelanggan universitas, pusat riset, lan departemen R&D pabrik kanggo tes rumus, senyawa dll.
Ana rong jinis kontrol listrik, PID contrial terpusat lan SIEMENS PLC kontrol layar tutul.
Rincian cepet
Daya: 5,5 kw
Diameter sekrup: 21,7 mm
Bahan sekrup: 38CrMoAL
Diameter barel: 22mm
Bahan laras: 38CrMoAL
Output: watara 2-15kg / h
Pengering: 0.26kw
Pelletizer: 0,75 kw
Cara nglereni: untaian banyu, untaian pendingin udara uga kasedhiya
Garansi: setaun
Lead time: 45 dina sawise simpenan
Daya panas: 16 kw
Zona pemanasan: 7 zona
Barel dawa: 120 * 7 = 840mm
Tipe kontrol: PID utawa PLC
kothak gear
Gear transmisi: Struktur tri-aksial paralel minangka kombinasi reduksi lan matriks.Gear digawe saka alloy kualitas dhuwur (20CrNi2Mo).Wis diolah kanthi proses panas sementasi, kelas presisi bisa tekan 6th.Iku njamin lumahing waos kacepetan dhuwur, overloading,swara kuranglan torsi dhuwur.
bantalan drive: Merk axletree:NSK Jepang.
Lubrication: Bantalan gear ing kothak gear bakal dadi lenga sing dicemplungake.Ana lubrication hydraulic ing engagement gear lan bantalan gear.
adhem: Cooling lubricated adopts cangkang lan tabung adhem lan sirkulasi cara cooling banyu.
meneng
Dhiameter:￠21,7 mm
L/D:40:1
Arah rotasi: Co-rotating
Meneng & unsur: W6Mo5Cr4V2(6542#) baja alat kacepetan dhuwur sing wis dianggep dening proses hardening vakum karo atose lumahing punikaHRC58-62.Molding liwat mesin grinding darmabakti.Kebersihan luwih apik tinimbang produk saka proses tradisional.
poros inti:Baja paduan kualitas dhuwur40CrNiMosing karo tenacity dhuwur lan kekiatan.Wis diobati kanthi proses hardening lan tempering.
Laras
1).Struktur:Ingdhisikbagean dianggo kanggo dipakani utama, lan ingkaping enembagean disetel kanggo venting vakum, liyane diblokir.
2).Bahan: Bahan laras38CrMoAlA, atose lumahing: HV950-1050, ambane 0.5-0.7mm 3).Pemanasan: Nganggo sawetara langkah format pemanasan listrik.Kabeh zona digawe pemanas tembaga.Total daya panas punika16KWlan max kapasitas panas saben bagean bisa tekan
500 ℃.
4).adhem: Nganggo sistem cooling banyu alus ing tong minyak lan tunyuk banyu cooling cara njaba tong minyak.Pipa sirkulasi digawe saka stainless steel lan katup pengatur aliran banyu yaiku katup tahan karat.
Merk katup elektromagnetik yaikuDANFOSS.
5).dawa:120*7=840mm
Cakupan panyedhiya
| Ora. | Isine | Unit | Jumlah | Tandha |
| 1 | Sistem ekstrusi sekrup kembar | nyetel | 1 | |
| 1.1 | Sistem pakan | nyetel | 1 | 0,25 kw |
| 1.2 | SJ-20 Twin meneng extruder | nyetel | 1 | 5,5kw, 40:1 |
| 1.3 | Sistem ventilasi vakum | nyetel | 1 | 0,75 kw |
| 1.4 | Sistem siklus banyu | nyetel | 1 | 0,55 kw |
| 1.5 | Pangowahan layar manual | nyetel | 1 | |
| 2 | Kabinet listrik | nyetel | 1 | |
| 3 | Sistem bantu water stand | nyetel | 1 | |
| 3.1 | Kepala mati | nyetel | 1 | |
| 3.2 | Banyu banyu | nyetel | 1 | 1 M |
| 3.3 | Pengering | nyetel | 1 | 0,26KW |
| 3.4 | Pelletizer | nyetel | 1 | 0,75KW |
| 4 | Dokumen | nyetel | 1 |

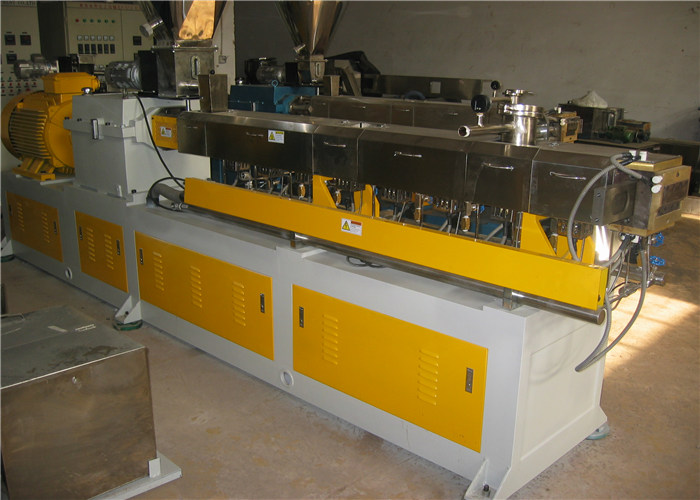

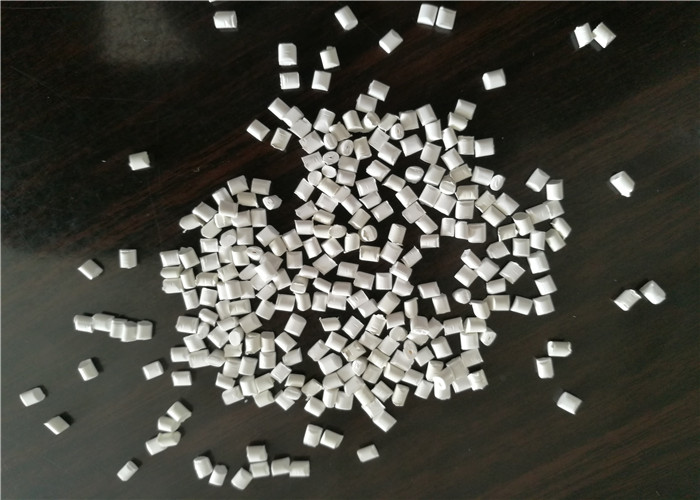

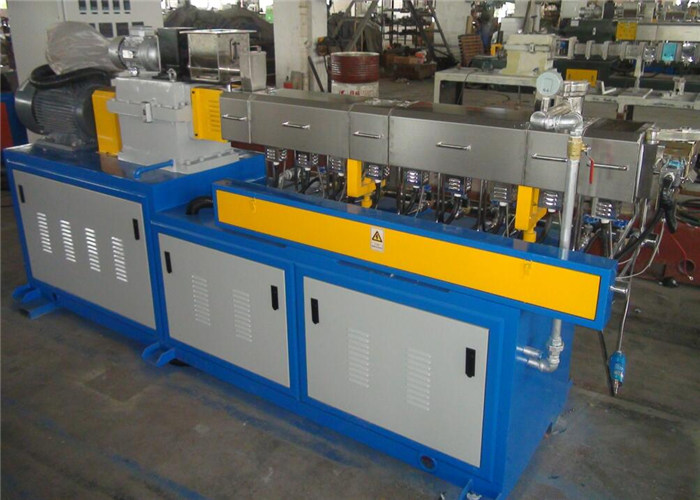

Foto sakaLaboratorium Mini Extruder
Data teknis utama macem-macem model mesin pelleitizing extruder kembar
| Tipe model | Seri | Diameter barel (mm) | Diameter sekrup (mm) | Screw L/D | kacepetan meneng n(r/min) | Daya motor utama (Kw) | Torsi sekrup T (Nm) | Rating torsi (T/A3) | Kapasitas produksi khas (kg/jam) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5,5 kw | 30/30 | ||
| SJSL-36 | A B C D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A B C D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A B C D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A B C D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A B C D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A B C D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
