Water Strand PET Pelletizing Machine Kanggo PET Flakes IV Loss Ing 5%
| Tipe Plastik: | Daur ulang Pet Flake | Garansi: | Setaun |
|---|---|---|---|
| Diameter sekrup: | 62,4 mm | Bahan Screw: | W6Mo5Cr4V2 |
| Bahan Bakul: | W6Mo5Cr4V2 Utawa 38CrMoAlA | Motor: | 90kw |
| Rpm: | 300 | IV Kerugian: | Ing 5% Kanggo Kelembapan Flake 1% |
Nanjing Yongjie miwiti nggawe mesin pelletizing sekrup kembar kembar wiwit taun 2001, extruder sekrup kembar kita digunakake kanggoenforcing modifikasi, degradab le master batch, anti-nyala master kumpulan etc.
Aplikasi mesin pelletizing plastik water strand
Reinforcement lan modifikasi:ngisi serat kaca utawa serat karbon kanggo
P, PA, PBT, ABS, AS, POM, PPS, PET etc.
Compounding lan campuran:PC + ABS, PA + ABS, PP + EPDM, PA + EPDM, PP + SBS, etc.
Pengisian modifikasi:ngisi Caco3, Talc, Titanium, karbon ireng kanggo PVC, PE, PP, EVA lsp.
Bahan kabel:LDE, HDPE, LLDPE, MDPE, pipa penggerak, bahan isolasi, bahan penghubung silang, bahan lapisan kabel, bahan kontraksi termal dll.
Materi aplikasi khusus:Senyawa pipa PPR, bahan tabung penghubung silang PE, bahan tip filter rokok, bahan serat acetable dll.
Masterbatch warna tebal:PE, ABS, PS, EVA, PET, PP + pigmen + aditif, etc.
Bahan flaming retarding:PVC, PP, PA, ABS, EVA, PBT + tahan geni, lsp
Masterbatch fungsi khusus:masterbatch proteksi ganda, masterbatch antistatik, masterbatch anti-bakteri, masterbatch insulasi termal, bahan hipotermia dll
Masterbatch biodegradable:PP, PE, PS + pati + aditif etc.
Rincian cepet
Diameter sekrup: 64.2mm
diameteripun tong minyak: 63mm
Daya: 90 kw
Bahan laras & sekrup: W6Mo5Cr4V2 baja alat kacepetan dhuwur
L/D:36:1
Dawane tong minyak: 240 * 10 bagean = 2400mm
Susunan sekrup khusus kanthi geser bahan flake, sistem vakum tenaga super kanggo nyuda mundhut IV kanthi maksimal.
Bagian utama lan parameter mesin
| Tipe model | Seri | Diameter barel (mm) | Diameter sekrup (mm) | Screw L/D | kacepetan meneng n(r/min) | Daya motor utama (Kw) | Torsi sekrup T (Nm) | Rating torsi (T/A3) | Kapasitas produksi khas (kg/jam) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5,5 kw | 30/30 | ||
| SJSL-36 | A B C D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A B C D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A B C D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A B C D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A B C D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A B C D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Gambar & Data

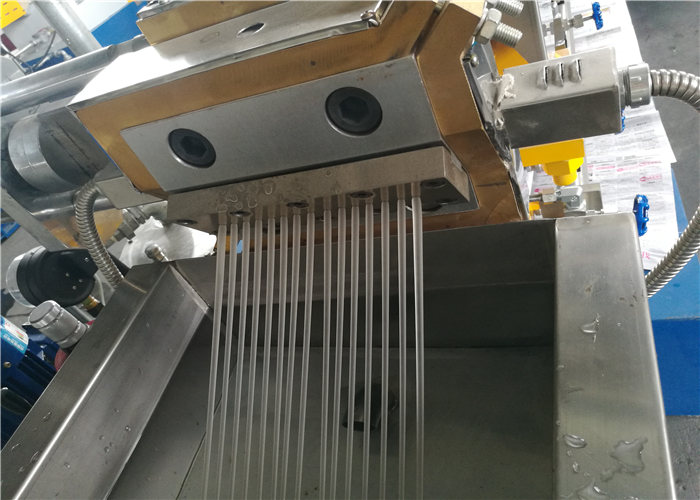

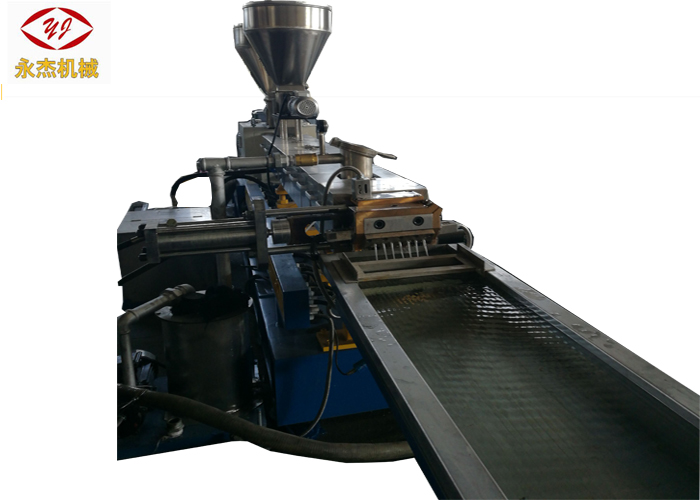

SJSL65B water strand twin screw extruder mesin pelletizing photo
Ringkesan Perusahaan
Nanjing Yongjie Qixin Machinery Equipment Co., LtdFounded in 2001, isine area 20.000 kothak meter ing tanah kita dhewe, karo output saben wulan saka mesin 20sets.Pabrik kita wis sertifikat CE, ISO9001: 2008. Perusahaan konsentrasi ing riset, pangembangan lan produksi "tingkat dhuwur, akurat, produk seri Highly canggih paralel co-puteran" cordwood "extruder meneng kembar, extruder meneng siji, extruders rong tahap lan mesin pelletizing plastik otomatis.Kita wis nyedhiyakake pelanggan produk kelas siji kanthi "torsi kuwat, produksi dhuwur, konservasi energi lan produk perlindungan lingkungan.Struktur meneng dirancang khusus wis temen maujud kasil kanggo "siji langkah mbentuk" ing macem-macem produk, lan digunakake digunakake ing piring aluminium komposit, XPS piring foaming, piring WP, PP, industri sheet PE, etc.
KUALITAS DIPATUHI PISAN , lan pabrik kita wis sertifikat kanggo ISO 9001:2008 lan CE.
