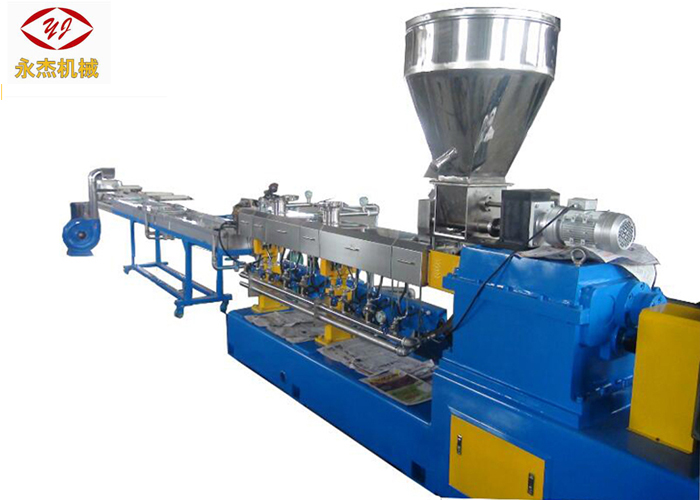

High Speed Clear PET Pelletizing Machine 62.4mm Screw Diameter Wear Resistance
| Screw Design: | Twin Screw Extruder | Ntchito: | Chiweto Chosachepera 20mm Chinyezi 1% |
|---|---|---|---|
| Overseas Engineers: | Likupezeka Kukhazikitsa Ndi Kutumiza | Screw Diameter: | 62.4 mm |
| Screw Material: | W6Mo5Cr4V2 | Njinga: | 90kw pa |
| Rpm: | 300 | Kuthekera: | 250-300kg / h |
Chotsani PET Flake Pellet Kupanga Machine Twin Screw Extruder PET Pelletizing Machine
Nanjing Yongjie anayamba kupanga madzi strand twin screw extruder pelletizing makina kuyambira 2001, mapasa athu wononga extruders chimagwiritsidwa ntchitokukakamiza kusinthidwa, degradab le master batch, anti-flame master batch etc.
Makina ogwiritsira ntchito makina a pulasitiki opangira madzi
Kulimbikitsa ndi kusintha:kudzaza galasi CHIKWANGWANI kapena mpweya CHIKWANGWANI kwa
P, PA, PBT, ABS, AS, POM, PPS, PET etc.
Kusakaniza ndi kusakaniza:PC+ABS, PA+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Kusintha kodzaza:kudzaza Caco3, Talc, Titanium, mpweya wakuda wa PVC, PE, PP, EVA etc.
Zida zama chingwe:LDE, HDPE, LLDPE, MDPE, galimoto chitoliro, kutchinjiriza zakuthupi, crosslinking zakuthupi, chingwe ❖ kuyanika zakuthupi, matenthedwe chidule zakuthupi etc.
Zapadera zogwiritsira ntchito:PPR paipi mankhwala, PE crosslinking chubu chuma, ndudu fyuluta nsonga zakuthupi, acetable CHIKWANGWANI zinthu etc.
Thick colorbatch:PE, ABS, PS, EVA, PET, PP+ pigment + zowonjezera, etc.
Zinthu zochepetsera moto:PVC, PP, PA, ABS, EVA, PBT + retardant moto, etc
Special functional masterbatch:double chitetezo masterbatch, antistatic masterbatch, anti-bacteria masterbatch, matenthedwe kutchinjiriza masterbatch, hypothermia zakuthupi etc.
The biodegradable masterbatch:PP, PE, PS+ wowuma + zowonjezera ndi zina.
Zambiri zamakina mwachangu
M'mimba mwake: 64.2 mm
Kutalika kwa mbiya: 63 mm
Mphamvu: 90kw
Zida za mbiya & screw: W6Mo5Cr4V2 chida chothamanga kwambiri
L/D:36:1
Utali wa mbiya: 240 * 9 gawo = 2160mm
Kuthamanga kwa bokosi la gear: 1480rpm, kutulutsa 300-500rpm
Kuchepetsa chiŵerengero: 3: 1
Zowonongeka zapadera zokhala ndi kukameta ubweya wa zinthu za flake, super power vacuum system kuti muchepetse kutaya kwa IV kwambiri.
Kuchuluka kwa kupereka
| Ayi. | Zamkatimu | Chigawo | Kuchuluka | Zizindikiro |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Kudyetsa dongosolo | set | 1 | 1.1kw |
| 1.2 | SJ-65BTwin screw extruder | set | 1 | 90kw, 36:1 |
| 1.3 | Makina apadera opumira a Vacuum a PET | set | 1 | 5.5kw, madoko awiri pa mbiya yachisanu ndi yachisanu ndi chiwiri |
| 1.4 | Madzi apanjinga dongosolo | set | 1 | 0.55kw |
| 1.5 | Makina osinthira pazenera | set | 1 | 1.5kw |
| 2 | Kabati yamagetsi | set | 1 | PID |
| 3 | Dongosolo lothandizira lamadzi-strand | set | 1 | |

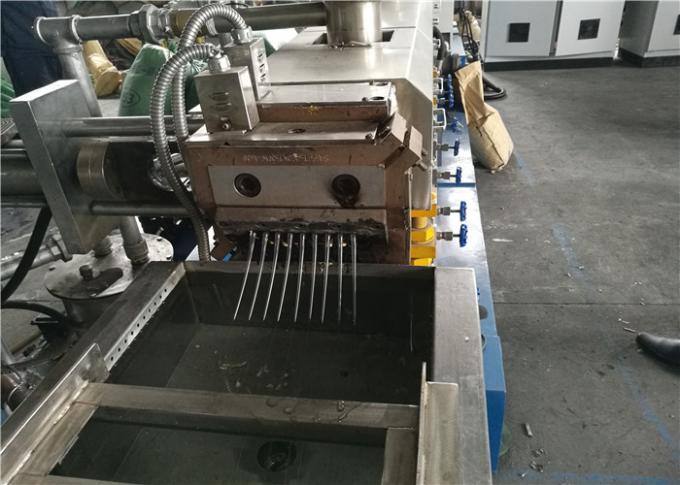

| 3.1 | Ifa mutu | set | 1 | |

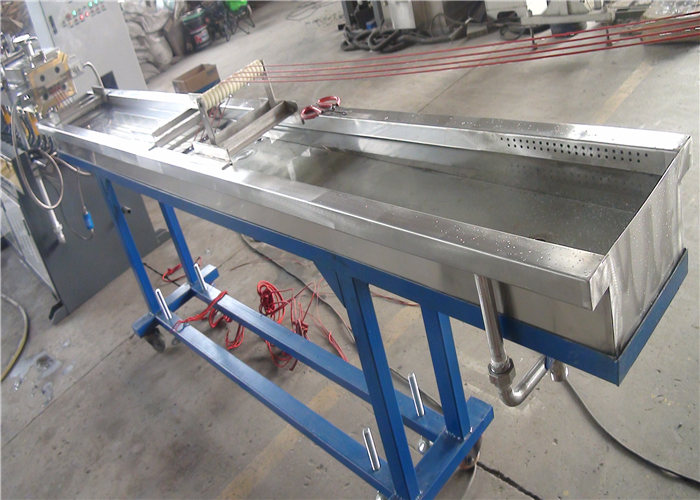

| 3.2 | Madzi | set | 1 | 4M |
| 3.3 | Chowumitsira | set | 1 | 2.2kw |
| 3.4 | Pelletizer | set | 1 | 300kg/h, 4kw |
| 4 | Zolemba | set | 1 |
Kuwongolera kolumikizana
1).The extruder motor yakhazikitsidwakuchuluka kwapanokukwaniritsachitetezo cha chain shutdownyokhala ndi kabati yowongolera magetsi.
2).Dongosolo lowongolera la injini yayikulu yamakinayolumikizidwa ndikuwongolera dongosolo la feeder motorngati njira yotetezerana.
3).Kutumiza gearboxndidongosolo mafutaamatsekedwa kuti atetezedwe.
4).The extruder yakhazikitsidwakupsyinjika kwakukulukukwaniritsachitetezo cha chain shutdownyokhala ndi kabati yowongolera magetsi.
5).Makina akuluzikugwirizana ndipini ya nayiloni ya gearbox yotumizirakuti adule pini ya nayiloni pamene torque yadzaza
Deta yayikulu yamakina amitundu yosiyanasiyana yamakina amapasa amapasa extruder pelletizing
| Mtundu wa chitsanzo | Mndandanda | Diameter ya mbiya (mm) | M'mimba mwake (mm) | Chophimba L/D | screw liwiro n(r/mphindi) | Main motor power (Kw) | Screw torque T(Nm) | Mtengo wa torque (T/A3) | Kuthekera kopanga (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| Chithunzi cha SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| Chithunzi cha SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| Chithunzi cha SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| Chithunzi cha SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| Zithunzi za SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| Chithunzi cha SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |

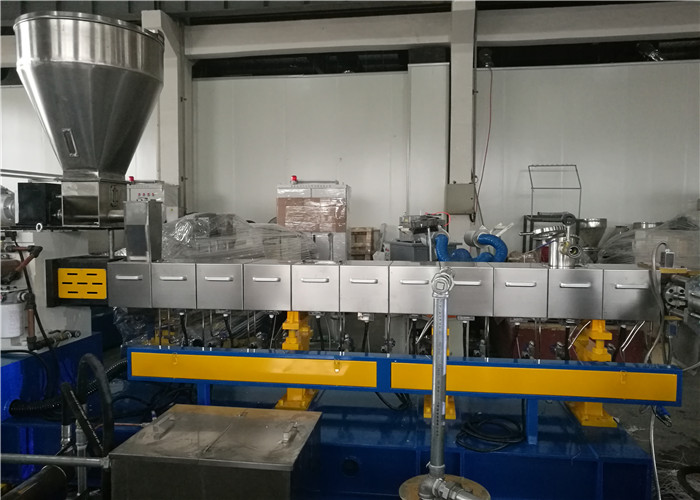

Zithunzi za 300kg/h SJSL65B Twin Screw Extruder Recycling PET Machine PET Pelletizing Machine
Chidule cha Kampani
Nanjing Yongjie Qixin Machinery Equipment Co., LtdYakhazikitsidwa mu 2001, imakwirira kudera la 20,000 masikweya mita pamtunda wathu, ndikutulutsa mwezi uliwonse kwa makina 20sets.fakitale yathu certificated kuti CE, ISO9001:2008.The kampani limayang'ana pa kafukufuku, chitukuko ndi kupanga "mkulu mlingo, zolondola, zapamwamba kwambiri mndandanda mankhwala kufanana co-azungulira "cordwood" amapasa wononga extruder, single wononga extruder, extruders siteji awiri ndi makina apulasitiki opangira ma pelletizing okha.Tapatsa makasitomala zinthu zapamwamba kwambiri "ma torque amphamvu, kupanga kwambiri, kuteteza mphamvu ndi zinthu zoteteza chilengedwe.Mapangidwe apadera opangira wononga adazindikira bwino pa "sitepe imodzi kuumba" pamitundu yambiri yazinthu, ndipo amagwiritsidwa ntchito kwambiri mu mbale ya aluminiyamu yophatikizika, mbale yotulutsa thovu ya XPS, mbale ya WP, PP, makampani opanga mapepala a PE, ndi zina zambiri.
QUULITY imayikidwa poyambirira , ndipo fakitale yathu ili ndi satifiketi ISO 9001:2008 ndi CE
