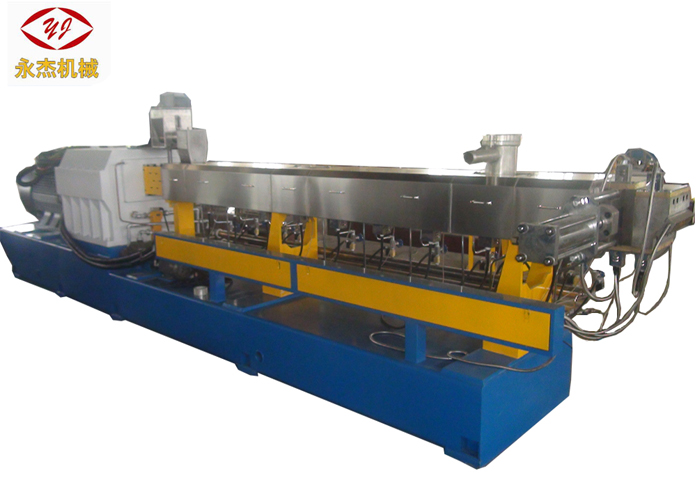

PET PBT POM Enginering Pulasitiki Pelletizing Machine Ndi 4000mm Madzi Tanki
Screw Design: | Twin Screw Extruder | Ntchito: | PET PBT POM ABS Engineing Pulasitiki |
---|---|---|---|
Chitsimikizo: | Chaka chimodzi | Overseas Engineers: | Likupezeka |
Screw Diameter: | 71 mm | Njinga: | 160kw |
Kuthekera: | 500-600kg / h | Tanki Yamadzi: | 4000 mm |
PET PBT POM ABS Enginering Pulasitiki Extruder Machine Pellet Kupanga Makina
Zambiri mwachangu
1. Chokhota
Diameter:¢71 mm
L/D:40:1
Njira yozungulira: Kuzungulira kozungulira
Zida ndi zinthu: W6Mo5Cr4V2(6542) mkulu liwiro chida zitsulo amene ankachitira ndi vakuyumu kuumitsa ndondomeko ndi kuuma kwa pamwamba ndiHRC58-62.Kuumba kudzera pa makina odzipereka opera.Ukhondowu ndi wabwino kwambiri kuposa zinthu zomwe sizinali zachikhalidwe.
Core axle:Mkulu khalidwe aloyi zitsulo40CrNiMokuti ndi kulimbikira kwakukulu ndi kulimba.Izo zinali kuthandizidwa ndi kuumitsa ndi kutentha ndondomeko.
2.Mgolo
1).Diameter: ¢72 mm pa
2).Kapangidwe:Thechoyambagawo ntchito chakudya chachikulu, ndichachisanugawo lakhazikitsidwa kuti lizitulutsa mpweya mwachilengedwe, ndichachisanu ndi chitatugawo lakhazikitsidwa kuti lizilowetsamo mpweya ndipo ena amatsekedwa.
3).Zakuthupi: Zida za mbiya zimapangidwa ndi38CrMoAlnitriding zitsulo.
4).Kutentha: Atengere angapo sitepe mtundu magetsi Kutentha.Gawo loyamba ndi lachiwiri ndi gawo la mutu wa makina ndi chotenthetsera chamkuwa ndipo ena ndi chotenthetsera cha aluminiyamu.Mphamvu yotentha yonse ndi60kw pandi kuchuluka kwa kutentha kwa gawo lililonse kumatha kufika500 ℃.
5).Kuziziritsa: Pezani njira yozizirira madzi yofewa mu mbiya ndi madzi apampopi njira yozizira kunja kwa mbiya.Mapaipi ozungulira amapangidwa ndi chitsulo chosapanga dzimbiri ndipo ma valve oyendetsa madzi ndi ma valve osapanga dzimbiri.
Mtundu wa ma electromagnetic valve ndiChithunzi cha DANFOSS.
6)Utali: 290*9 = 2610mm
Mitundu yotchuka padziko lonse lapansi ya zida zamagetsi
1).Meta yowongolera kutentha ndi JapanMtengo wa RKCmita, mtundu wanzeru, njira ziwiri;
2).Inverter ya extruder ndiABB;
3).Zida zotsika-voltage ndi batani lotengeraChithunzi cha SCHNEIDERmankhwala;
4).AC contactor kutengeraSIEMENSmankhwala;
5).Makina akulu ndiSISMENS BEIDE;
6).Mpweya wosinthira umatengeraCHINTmankhwala.The solid-state relays ndi ochokera ku American joint venture brand;
7).Vavu yamagetsi yamagetsi: kutengera DenmarkChithunzi cha DANFOSSmankhwala.

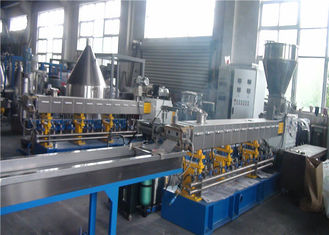

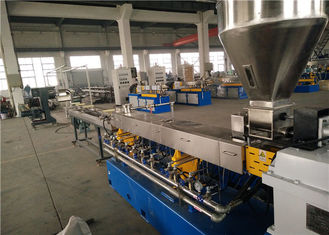

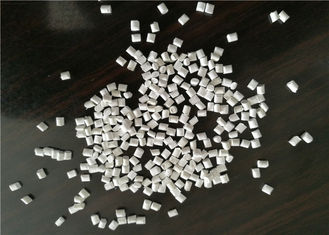

Zithunzi zaPET PBT POM ABS Enginering Pulasitiki Extruder Machine Pellet Kupanga Makina
Zigawo zaulere:
Ayi. | Zamkatimu | Chigawo | Kuchuluka | Zizindikiro |
1 | Zomangamanga | set | ~ 300 mm | |
2 | Zisindikizo za mafuta a shaft ndi zotulutsa | chidutswa | 3 | |
3 | Mphete yosindikizira pachipinda cholowera | chidutswa | 1 | |
4 | Magolovesi a asibesitosi | awiriawiri | 2 | |
5 | Allen key (mkati) | set | 1 | 5 zidutswa |
6 | Allen key (wakunja) | set | 1 | 3 zidutswa |
7 | Cross, Flat screw driver | chidutswa | 1 aliyense | 2 zidutswa |
8 | Screw hoisting mphete | chidutswa | 2 |
Deta yayikulu yamakina amitundu yosiyanasiyana yamakina opangira ma twin screw extruder pelleitizing
Mtundu wa chitsanzo | Mndandanda | Diameter ya mbiya (mm) | M'mimba mwake (mm) | Chophimba L/D | screw liwiro n(r/mphindi) | Main motor power (Kw) | Screw torque T(Nm) | Mtengo wa torque (T/A3) | Kuthekera kopanga (kg/h) |
Chithunzi cha SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
Chithunzi cha SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
Chithunzi cha SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
Chithunzi cha SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
Zithunzi za SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
Chithunzi cha SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Chidule cha Kampani
Nanjing Yongjie Qixin Machinery Equipment Co., LtdYakhazikitsidwa mu 2001, imakwirira kudera la 20,000 masikweya mita pamtunda wathu, ndikutulutsa mwezi uliwonse kwa makina 20sets.fakitale yathu certificated kuti CE, ISO9001:2008.The kampani limayang'ana pa kafukufuku, chitukuko ndi kupanga "mkulu mlingo, zolondola, zapamwamba kwambiri mndandanda mankhwala kufanana co-azungulira "cordwood" amapasa wononga extruder, single wononga extruder, extruders siteji awiri ndi makina apulasitiki opangira ma pelletizing okha.Tapatsa makasitomala zinthu zapamwamba kwambiri "ma torque amphamvu, kupanga kwambiri, kuteteza mphamvu ndi zinthu zoteteza chilengedwe.Mapangidwe apadera opangira wononga adazindikira bwino pa "sitepe imodzi kuumba" pamitundu yambiri yazinthu, ndipo amagwiritsidwa ntchito kwambiri mu mbale ya aluminiyamu yophatikizika, mbale yotulutsa thovu ya XPS, mbale ya WP, PP, makampani opanga mapepala a PE, ndi zina zambiri.
QUULITY imayikidwa poyambirira , ndipo fakitale yathu ili ndi satifiketi ISO 9001:2008 ndi CE.
