2900mm Uburebure bwa Barrel PET Pelletizing Imashini hamwe na 2 Sets Vacuum Venting Sisitemu
Igishushanyo mbonera: | Twin Screw Extruder | Ubwoko bwa plastiki: | Kongera gutunganya icupa ryamatungo |
---|---|---|---|
Gusaba: | Amacupa yamatungo | Ibisabwa bya Flake: | Munsi ya 20mm, Ubushuhe <0.5% |
Abashakashatsi bo mu mahanga: | Biraboneka Kubishyiraho no Kwinjira | Ikigereranyo cya Diameter: | 71mm |
Ibikoresho: | W6Mo5Cr4V2 | Uburebure bwa Barrale: | 2900mm |

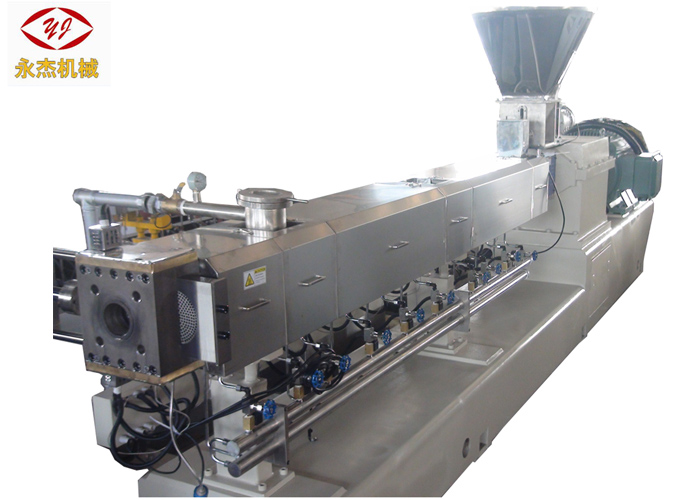

SJSL75A 300kg / h Amatungo yinyamanswa Yongeye gutunganya umurongo PET Pelletizing Imashini
Nanjing Yongjie yatangiye gukora imashini ya water twin screw extruder pelletizing imashini kuva 2001, ibyuma byacu byimpanga bikoreshwa cyane kurigushyira mubikorwa guhindura, degradab le master batch, anti-flame master batch nibindi
Amazi ya plastike ya pelletizing imashini ikoreshwa
Gushimangira no guhindura:kuzuza fibre fibre cyangwa fibre ya karubone kuriP, PA, PBT, ABS, AS, POM, PPS, PET nibindi
Guteranya no kuvanga:PC + ABS, PA, + ABS, PP + EPDM, PA + EPDM, PP + SBS, nibindi
Kuzuza impinduka:kuzuza Caco3, Talc, Titanium, umukara wa karubone kuri PVC, PE, PP, EVA nibindi
Umugozi wibikoresho:LDE, HDPE, LLDPE, MDPE, imiyoboro yo gutwara, ibikoresho byo kubika, ibikoresho bihuza, ibikoresho bifata insinga, ibikoresho byo kugabanya ubushyuhe nibindi.
Ibikoresho bidasanzwe byo gusaba:Imiyoboro ya PPR, ibikoresho bya PE byuzuzanya, itabi ryungurura ibikoresho, ibikoresho bya fibre acetable nibindi.
Ibara ryijimye:PE, ABS, PS, EVA, PET, PP + pigment + inyongera, nibindi
Ibikoresho bidindiza umuriro:PVC, PP, PA, ABS, EVA, PBT + izimya umuriro, nibindi
Igishushanyo mbonera cyihariye:gukingirwa kabiri gukingira, kurwanya antistatike, kurwanya anti-bagiteri, gukwirakwiza ubushyuhe bwumuriro, ibikoresho bya hypothermia nibindi
Igishushanyo mbonera cyibinyabuzima:PP, PE, PS + ibinyamisogwe + inyongeramusaruro nibindi
Ibisobanuro byihuse byimashini
Diameter ya kaburimbo: 71mm
Diameter ya barriel: 71.8mm
Imbaraga: 110kw
Barrel & screw ibikoresho: W6Mo5Cr4V2 ibyuma byihuta byuma byuma
L / D: 40: 1
Uburebure bwa barrale: 290 * 10 igice = 2900mm
Imashini idasanzwe hamwe no kwambara ibikoresho bya flake, super power vacuum sisitemu yo kugabanya igihombo cya IV cyane.
Ingano yo gutanga:
Oya. | Ibirimo | Igice | Umubare | Ibimenyetso |
1 | Sisitemu yo gukuramo impanga | gushiraho | 1 | |
1.1 | Sisitemu yo kugaburira | gushiraho | 1 | 1.5kw |
1.2 | Kugaburira kuruhande | gushiraho | 1 | Kuri pigment |
1.3 | SJ-75Twin screw extruder | gushiraho | 1 | 110kw, 40: 1 |
1.4 | Sisitemu yo guhumeka | gushiraho | 2 | 2.2kw / gushiraho, 4.4kw yose hamwe |
1.5 | Sisitemu yo gusiganwa ku magare | gushiraho | 1 | 0.55kw |
1.6 | Guhindura ecran byikora | gushiraho | 1 | 1.5kw |
2 | Inama y'amashanyarazi | gushiraho | 1 | |
3 | Sisitemu yo gufasha-amazi | gushiraho | 1 | |
3.1 | Gupfa umutwe | gushiraho | 1 | |
3.2 | Inkono y'amazi | gushiraho | 1 | 4M |
3.3 | Kuma | gushiraho | 1 | 2.2kw |
3.4 | Pelletizer | gushiraho | 1 | 500kg / h, 5.5kw |
4 | Inyandiko | gushiraho | 1 |
Ijambo ikirango kizwi cyibikoresho byamashanyarazi
1).Sisitemu yo kugenzura PLC ni IkidageSIEMENS ;
2).Extruder inverter ni IkiyapaniABB
3).Ibikoresho bito-voltage na buto ifataSCHNEIDERibicuruzwa;
4).Umuhuza wa ACSIEMENSibicuruzwa;
5. Moteri nyamukuru niSISMENS BEIDE;
6. Guhindura ikirereUMUKINOibicuruzwa.Ibyerekezo bikomeye bya reta biva mubucuruzi bwabanyamerika bahuriweho;
7).Umuyoboro wa electromagnetic wakira DanemarkDANFOSSibicuruzwa.
Incamake ya sosiyete
Nanjing Yongjie Qixin Imashini Ibikoresho Co, Ltd.Yashinzwe mu 2001, ifite ubuso bwa metero kare 20.000 kubutaka bwacu, hamwe nibisohoka buri kwezi imashini 20sets.Uruganda rwacu rwemejwe na CE, ISO9001: 2008. Isosiyete yibanda cyane kubushakashatsi, iterambere no gukora "ibicuruzwa byo mu rwego rwo hejuru, byukuri, bihanitse cyane bigereranywa no gufatanya kuzenguruka" umugozi "twin screw extruder, extruder imwe imwe, ibyiciro bibiri kandi imashini zikoresha plastike.Twahaye abakiriya ibicuruzwa byo mu rwego rwa mbere "imbaraga zikomeye, umusaruro mwinshi, kubungabunga ingufu n'ibicuruzwa byo kurengera ibidukikije.Imiterere yihariye ya screw yatahuye neza kuri "intambwe imwe yo gushiraho" ku bwoko bwinshi bwibicuruzwa, kandi ikoreshwa cyane muri plaque ya aluminiyumu, isahani ya furo ya XPS, icyapa cya WP, PP, inganda za PE, nibindi.
QAULITY YASHYIZWE MBERE , kandi uruganda rwacu rwemewe kuri ISO 9001: 2008 na CE.
