Fully Automatic PET Recycling Machine , Tulaga Maualuga 300kg PET Pelletizer
| Fuafuaga Siu: | Twin Screw Extruder | Ituaiga palasitika: | Pa'epa'e, Blue Pa'epa'e, Green Pet Flake |
|---|---|---|---|
| Fa'atosina: | 300kg | Flake Manaomia: | I lalo ifo o le 20mm, Susū <0.5% |
| O le paelo lapoa: | 71.8mm | Siu lapoa: | 71mm |
| Mea Siu: | W6Mo5Cr4V2 | Vaega paelo: | 9 Vaega |
SJSL75A 300kg/h fagafao toe fa'aaogaina masini masini sikuli masaga extruder PET Pelletizing Machine
Na amata ona faia e Nanjing Yongjie le masini faʻapipiʻi masini faʻapipiʻi masini faʻapipiʻi faʻapipiʻi vai mai le 2001, o loʻo faʻaaogaina lautele mofaamalosia le suiga, degradab le master batch, anti-flame master batch etc.
Fa'aogaina masini pelletizing palasitika vai pipii
Fa'amalosia ma suiga:fa'atumu alava tioata po'o alava carbon mo
P, PA, PBT, ABS, AS, POM, PPS, PET ma isi.
Fa'afefiloi ma fa'afefiloi:PC + ABS, PA + ABS, PP + EPDM, PA + EPDM, PP + SBS, ma isi.
Fa'atumu suiga:faʻatumu Caco3, Talc, Titanium, carbon black mo PVC, PE, PP, EVA ma isi.
Mea uaea:LDE, HDPE, LLDPE, MDPE, paipa ta'avale, mea fa'apipi'i, mea fa'afeso'ota'i, mea fa'apipi'i uaea, mea fa'amama vevela ma isi.
Mea fa'apitoa fa'aoga:PPR paipa tuufaatasia, PE crosslinking mea mea, sikaleti faamama pito mea, acetable fiber mea ma isi.
Masterbatch lanu mafiafia:PE, ABS, PS, EVA, PET, PP + pigment + faʻaopoopoga, ma isi.
Mea e mumu ai le afi:PVC, PP, PA, ABS, EVA, PBT + afi mumu, ma isi
Masterbatch fa'apitoa fa'atino:lua puipuiga masterbatch, antistatic masterbatch, anti-bacteria masterbatch, vevela insulation masterbatch, maalili mea ma isi.
O le masterbatch e mafai ona fa'aolaina:PP, PE, PS + masoa + faaopoopo ma isi.
Fa'amatalaga vave o le masini
Siu lapoa:71mm
paelo lapoa:71.8mm
Malosiaga: 132kw
Pa'u & si'ila mea:W6Mo5Cr4V2 maualuga saoasaoa meafaigaluega uamea
L/D:36:1
Umi ole paelo:290*9 vaega=2610mm
Pusa: 0-300rpm
Tuuina atu o masini: 400kg/h
Fa'atatau mo fasi fagafao i lalo ifo o le 15mm, susu itiiti ifo i le 1%
Fa'ailoga fa'ailoga fa'apitoa fa'atasi ma sele fa'aofuofu o mea fa'apipi'i.
Aofai o sapalai:
| Leai. | Mataupu | Vaega | Tele | Maka |
| 1 | Faiga fa'apipi'i siku masalua | seti | 1 | |
| 1.1 | Faiga fafaga | seti | 1 | 1.5kw |
| 1.2 | Fafaga itu | seti | 1 | mo pigmenti |
| 1.3 | SJ-75Twin screw extruder | seti | 1 | 110kw, 36:1 |
| 1.4 | Vacuum veting system | seti | 1 | 7.5kw, lua ports |
| 1.5 | Suavai uila faiga | seti | 1 | 0.55kw |
| 1.6 | Suia mata otometi | seti | 1 | 1.5kw |
| 2 | Kapoti eletise | seti | 1 | |
| 3 | Suavai-anoa fesoasoani faiga | seti | 1 | |
| 3.1 | Maliu ulu | seti | 1 | |
| 3.2 | Alavai | seti | 1 | 4M |
| 3.3 | Fagogo | seti | 1 | 2.2kw |
| 3.4 | Pelletizer | seti | 1 | 500kg/h, 5.5kw |
| 4 | Pepa | seti | 1 |
Upu lauiloa lauiloa o vaega eletise
1).PID fa'atotonugalemu pulea, RKC mita, ituaiga atamai, ala lua
2).Extruder inverter o IapaniABB
3).O mea faigaluega maualalo-voltage ma le faamau faʻaaogainaSCHNEIDERoloa;
4).fa'afeso'ota'i AC taliaSIEMENSoloa;
5. O le afi autu o leSISMENS TUA;
6. Fa'aaoga le ki eaCHINToloa.O ta'avale malo mautu e mai le fa'ailoga tu'ufa'atasi a Amerika;
7).O le valve electromagnetic e faʻaaogaina TenimakaDANFOSSoloa.

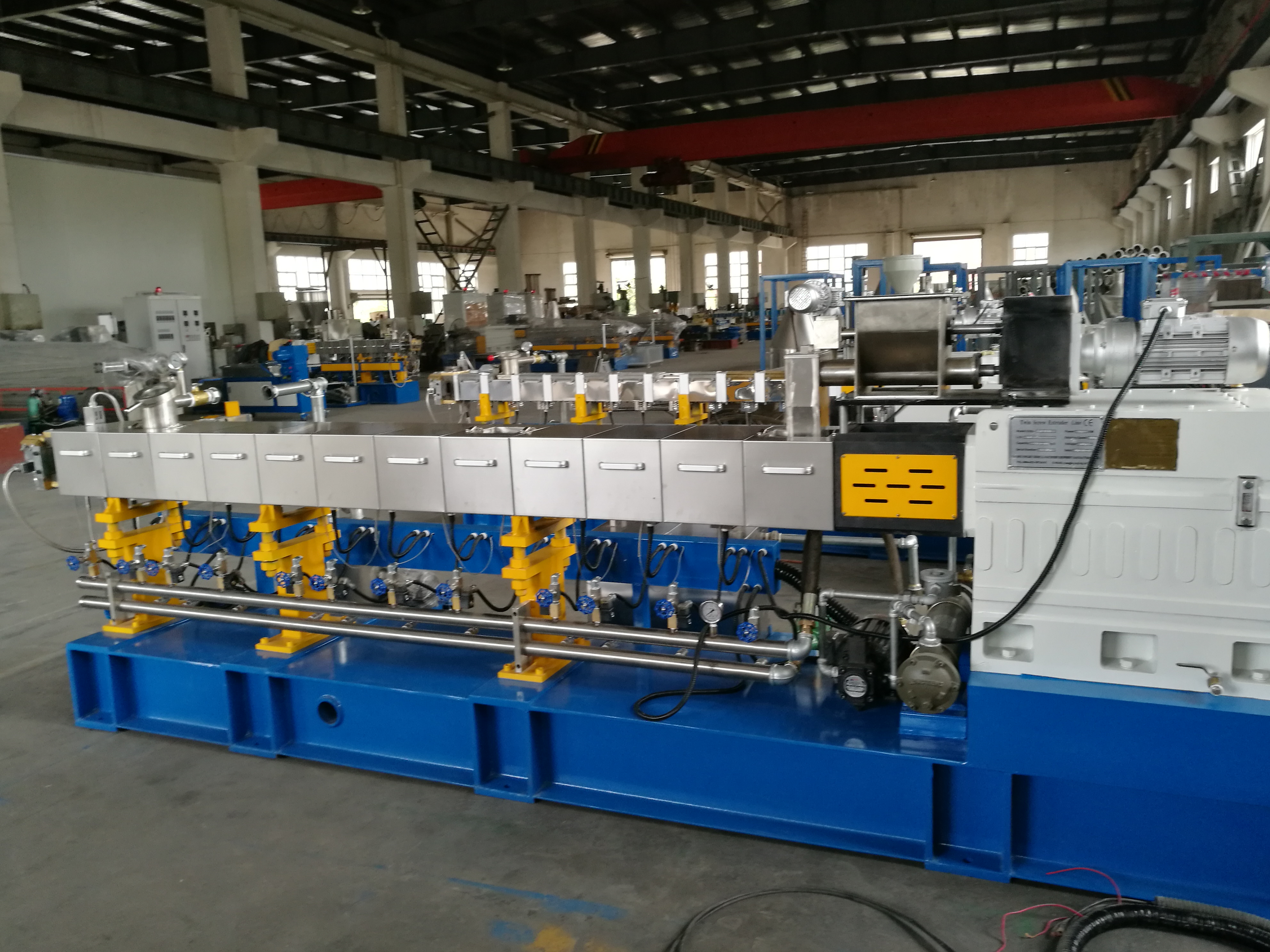

Ata oSJSL75A 300kg/h fagafao toe fa'aaogaina extruder PET Pelletizing Machine
Fa'amatalaga a le Kamupani
Nanjing Yongjie Qixin Machinery Equipment Co., LtdFaavaeina i le 2001, e aofia ai se vaega o le 20,000 sikuea mita i luga o lo tatou lava fanua, faatasi ai ma galuega faatino faalemasina o masini 20sets.O lo matou falegaosimea ua faʻamaonia i le CE, ISO9001: 2008. O loʻo taulaʻi le kamupani i suʻesuʻega, atinaʻe ma le gaosiga o le "tulaga maualuga, saʻo, sili ona faʻapitoa oloa faʻasologa tutusa tutusa faʻatasi "cordwood" twin screw extruder, extruder sikulima tasi, extruders tulaga lua ma masini pelletizing palasitika otometi.Ua matou tuʻuina atu i tagata faʻatau oloa muamua-vasega ma le "malosi malosi, gaosiga maualuga, faʻasao malosi ma oloa puipuia o le siosiomaga.O le fausaga faʻapitoa faʻapipiʻi faʻapipiʻi ua iloa lelei mo le "tasi laasaga e faʻapipiʻiina" i luga o le tele o ituaiga o oloa, ma e faʻaaogaina lautele i le alumini faʻapipiʻi ipu, XPS foaming plate, WP plate, PP, PE pepa alamanuia, ma isi.
UA FAATUMUA LE UIGA , ma o lo matou falegaosimea ua faʻamaonia i ISO 9001:2008 ma CE.
