Mashiinka Buuxinta Waxtarka Tamarta ee Shiinaha Mashiinka Masterbatch oo leh shaybaar cabbir Twin Screw Extruder warshad iyo soosaarayaal |Yongjie

Mashiinka Buuxinta Waxtarka Tamarta ee Masterbatch oo leh Sawirka Shaybaarka ee Mataanaha ah

Mashiinka Buuxinta Waxtarka Tamarta ee Masterbatch oo leh Cabirka Shaybaadhka Twin Screw Extruder

Sharaxaad Gaaban:

Faahfaahinta Sharaxaada Alaabta Naqshadeynta Naqshadeynta Twin Screw Extruder: Tijaabada Formula IWM Dhererka Foosto: 840mm Dhexroorka Wareegga: 21.7mm Matoorka: 5.5kw Awoodda: 2-15kg/h L/D: 40: 1 Qalabka Qalabka: W6Mo5Cr24V2J2J-SLk Extruder Twin Screw Extruder Filler Masterbatch Mashiinka Tijaabada Faahfaahin deg deg ah Awood: 5.5kw Walxaha iskuxiran: W6Mo5Cr4V2 Walxaha Foosto: 45The...

Email noogu soo dir Soo deji sida PDF

Faahfaahinta Alaabta

Tags Product

Sharaxaada Alaabta oo faahfaahsan

Naqshadaynta Iskoolada:	Twin Screw Extruder	Codsiga:	Tijaabada Formula IWM
Dhererka Foosto:	840mm	Dhexroorka Iskoodhka:	21.7mm
Matoorka:	5.5kw	Awoodda:	2-15kg/h
L/D:	40:1	Alaabta Scre:	W6Mo5Cr4V2

SJSL20 2-15kg Shaybaarka Extruder Twin Screw Extruder Filler Masterbatch Machine Tijaabada

Faahfaahin degdeg ah

Awoodda: 5.5kw

Qalab xalaal ah:W6Mo5Cr4V2

Walxaha foosto:45 ： bir been abuur ah oo leh daawaha u adkaysta 101 (Ni-Fe-Cr-W) gudaha taas siman

iyo nabar u adkaysta.Adaggu waa HRC60-64.

L/D:40:1

Wax soo saarka: 20-70kg / h iyadoo loo eegayo walxo kala duwan, caanaha iyo farsamada habka iwm.

Kacaanka: 0-600rpm;

Saamiga dhimista: i = 2.5:1

Axle Core: Birta aluminium tayo sare leh40CrNiMotaas oo leh adkeysi sare iyo adkeysi.Waxaa lagu daweeyey habka qallafsanaanta iyo xanaaqa.

Dhexroorka daboolka:21.7mm

Dhexroorka foosto:22mm, Themarka horeqaybta waxay u shaqeysaa quudinta ugu weyn, eeshanaadqaybta waxaa loo dejiyey inay si dabiici ah u neefsato, iyosagaalaadqayb ayaa loo dejiyay hawo-mareenka vacuum kuwa kalena waa la xannibay.

Mashiinka Buuxinta Waxtarka Tamarta ee Masterbatch oo leh Cabirka Shaybaadhka Twin Screw Extruder

Qodobka Ganacsiga

Wakhtiga hogaanka: 45 maalmood ka dib dhigaalka

Injineerada diyaarka u ah rakibida dibadda, hawlgelinta iwm

Waqtiga lacag bixinta: 30% deebaajiga TT, 70% dheelitirka ka hor inta aan la soo dejin ka dib tijaabada iyo mashiinka u qalma ee soo saaraha iibiyaha, bixinta L/C waa gorgortan

Adeegga iibka ka hor

♦1.Taageerada weydiinta iyo la-talinta.

♦2.Xulashada dhaqaale iyo mashiinno laxiriira macaamiisha.
♦3.Bixinta faahfaahinta farsamada ee mashiinka.
♦4.Bixinta hababka tijaabada ee macaamilka.

♦5.Socdaal warshadeed & caawimaad warqad martiqaad ah markii loo baahdo.
Adeegga iibka
♦1.Soo jeedinta shuruudaha injineernimada ayaa looga baahan yahay rakibaadda.
♦2.Ku-xidhiidhinta waqtiga loogu talagalay heerka wax-soo-saarka mashiinnada.
Adeegga iibka kadib
♦1.Injineerada diyaar u ah mishiinada adeega dibada ee rakibaadda, hawlgelinta iyo tababarka.
♦2.Si faahfaahsan u xaraynta macluumaadka dalabka macmiilka.
♦3.Bixinta adeegga dayactirka muddada-dheer iyo agabka dheeriga ah.
♦4.Siinta taageero farsamo macmiilka si uu u horumariyo wax soo saarka cusub.
♦5.Bixinta dayactir bilaash ah muddo sannad ah.

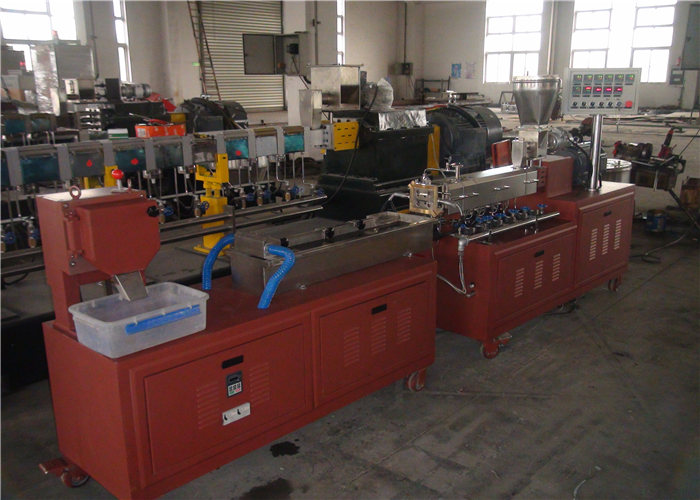

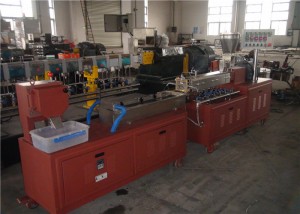

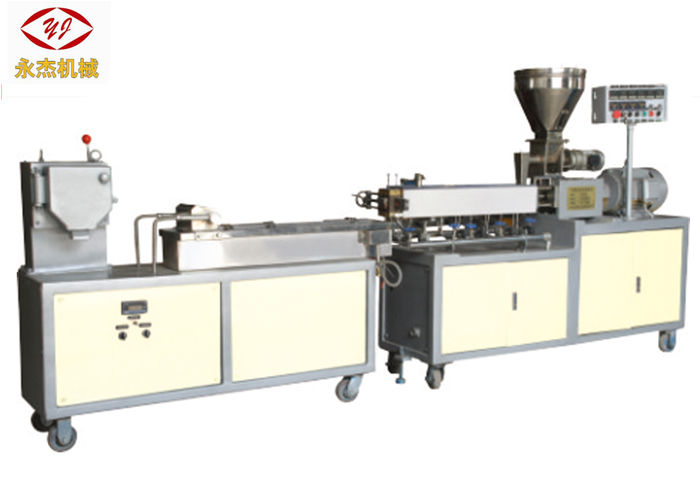

Sawirka SJSL20 shaybaarka mini extruder

Mashiinka Buuxinta Waxtarka Tamarta ee Masterbatch oo leh Cabirka Shaybaadhka Twin Screw Extruder

Xogta ugu weyn ee farsamada ee nooc kala duwan oo ah mishiinka birta wax ka saara ee mataanaha ah

Nooca model	Taxane	Dhexroorka foosto (mm)	Dhexroorka daboolka (mm)	Isku dhufashada L/D	xawaaraha isku dhufashada n(r/min)	Awoodda matoorka ugu muhiimsan (Kw)	Xawaaraha xawaaladaha T (Nm)	Qiimaynta Torque (T/A³)	Awood wax-soo-saarka caadiga ah (kg/saacaddii)
SJSL-20	A/B	21.7	22	32-44	400/600	4/5.5	30	4.8	2-15
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Warbixinta Shirkadda

Nanjing Yongjie Qixin Machinery Equipment Co., LtdWaxaa la aasaasay 2001, oo daboolaya aag ah 20,000 mitir oo laba jibbaaran oo ku saabsan dhulkeenna, oo leh wax soo saarka bille ah ee mishiinka 20sets.Our warshad la shahaado si CE, ISO9001: 2008. Shirkadda xoogga saaray cilmi, horumarinta iyo wax soo saarka ee "heerka sare, sax ah, heer sare ah taxane alaabta barbar socda co-wareeg"cordwood" fur fur furan extruder, hal boolal extruder, laba extruders marxaladda iyo mashiinada pelleting caag ah oo toos ah.Waxaan siinay macaamiisha alaabada heerka koowaad ah "qulqul xoog leh, wax soo saar sare, ilaalinta tamarta iyo alaabta ilaalinta deegaanka.Qaab dhismeedka khaaska ah ee loo qaabeeyey wuxuu si guul leh u gaaray "hal tallaabo qaabeynta" noocyo badan oo alaab ah, waxaana si ballaaran loogu isticmaalaa saxan isku dhafan aluminium, saxan xumbo XPS, saxan WP, PP, warshadaha xaashida PE, iwm.
