White Filler Master Batch Making Machine Twin Screw Granulation Abrasion Resistance
| Screw Design: | Twin Screw Extruder | Plastic Type: | PP/PE White Filler Masterbatch |
|---|---|---|---|
| Warranty: | One Year | Screw Diameter: | 71.8mm |
| Screw & Barrel Material: | W6Mo5Cr4V2 | Cutting Type: | Water Ring Hot Cutting |
| Capacity: | 2000-2500kg/h | Color: | Blue, White, Or Others |
White Filler Masterbatch Manufacturing Machine Twin Screw Granulator Plastic Pelletizer
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details
Screw diameter:71mm
Screw material:W6Mo5Cr4V2 high speed tool steel
Barrel diameter:72mm
Barrel material:W6Mo5Cr4V2 high speed tool steel
L/D:48/52:1
Output:2000-2500kg/h
Formula:PE/PP+80-85% caco3+PE wax+additives
Scope of Supply
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 1.5kw |
| 1.2 | SJ-75D Twin screw extruder | set | 1 | 250kw, 48:1 |
| 1.3 | Vacuum venting system | set | 1 | 3kw |
| 1.4 | Water cycling system | set | 1 | 0.75kw |
| 1.5 | Automatic screen changer | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water strand auxiliary machine | Set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Water trough | set | 1 | 5M |
| 3.3 | Dryer | set | 1 | 3kw |
| 3.4 | Pelletizer | set | 1 | 11kw |
| 4 | Water-ring auxiliary system | set | 1 | |
| 4.1 | Water-ring die head | set | 1 | |
| 4.2 | Face cutter with guide rail with cover | set | 1 | 2.2KW |
| 4.3 | Centrifugal dehydrator | set | 1 | 7.5KW |
| 4.4 | Vibrating sieve | set | 1 | 3M |
| 4. | Storage bin | set | 1 | Φ1000 |
| 5 | Documents | set | 1 |
Main technical data of various model of twin screw extruder pelletizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |

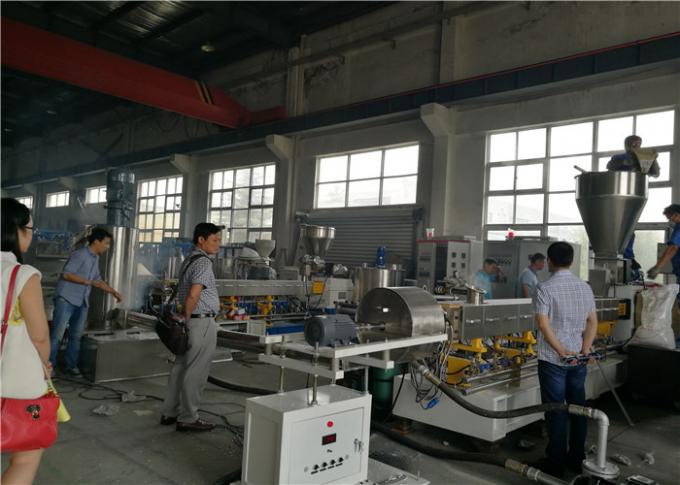

Photo of SJSL75D filler masterbatch machine

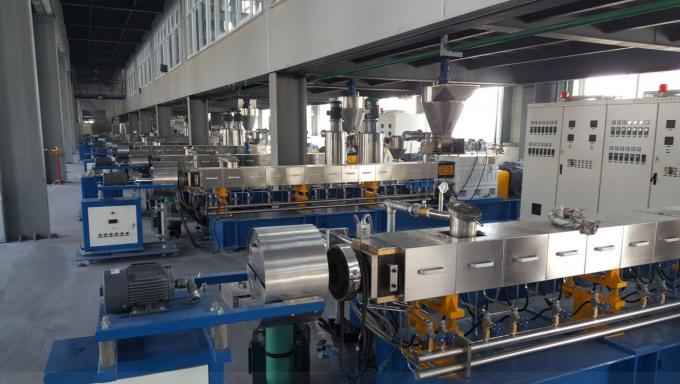

Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
