2000kg/H I-Calcium Carbonate High Filler Masterbatch Machine Eyenziwe Ngokwezifiso Iwaranti Yonyaka owodwa
| Idizayini yesikulufu: | I-Twin Screw Extruder | Uhlobo Lwepulasitiki: | I-PP/PE White Filler Masterbatch |
|---|---|---|---|
| Isiqinisekiso: | Unyaka owodwa | I-Screw Diameter: | 71 mm |
| Isikulufu Nemigqomo Material: | I-W6Mo5Cr4V2 | Uhlobo lokusika: | Indandatho Yamanzi Ukusika Okushisayo |
| Amandla: | 2000kg/h | Umbala: | Noma yimuphi Umbala Ungenziwa Ngokwezifiso |
2000kg/H I-Calcium Carbonate High Filler Masterbatch Machine Eyenziwe Ngokwezifiso Iwaranti Yonyaka owodwa
Isicelo se-Water Ring Pelletizer:
1. PE, Eva njll + Caco3, inkulumo, Tio92, ukugcwalisa ukuguqulwa kanye carbon black njll.
2. I-LDPE, i-HDPE, i-LLDPE, i-MDPE, i-drivepipe, i-insulation material, i-crosslinking material, i-cable coating material, i-thermal contraction pipe material njll.
3. Izinhlanganisela zamapayipi e-PPR, impahla ye-PE crosslinking tube, TPR, TPU thermoplastic elastomer, EVA kanye ne-adhesive encibilikayo eshisayo njll.
4. PE, ABS, PS, EVA masterbatch njll.
5. ABS, EVA flaming retarding masterbatch njll.
6. Ukugcwaliswa kwe-PE, PP, PS kanye ne-biodegradable masterbatch, njll.
Imininingwane esheshayo
Isikulufu ububanzi: 71mm
Isikulufu impahla:W6Mo5Cr4V2 high speed ithuluzi steel
Umgqomo ububanzi: 72mm
Izinto zomgqomo:W6Mo5Cr4V2 ithuluzi lensimbi elinesivinini esikhulu
L/D:48/52:1
Okukhiphayo: 2000-2500kg/h
Ifomula:PE/PP+80-85% caco3+PE wax+izithasiselo
Idatha enkulu yobuchwepheshe yemodeli ehlukahlukene yomshini we-twin screw extruder pelletizing
| Uhlobo lwemodeli | Uchungechunge | Ububanzi Bomgqomo (mm) | Isikulufa Ububanzi (mm) | Isikulufu L/D | isivinini sesikulufa n(r/min) | Amandla amakhulu emoto (Kw) | I-screw torque T(Nm) | Isilinganiso se-torque (T/A3) | Amandla okukhiqiza ajwayelekile (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | ||
| I-SJSL-36 | A B C D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| I-SJSL-51 | A B C D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| I-SJSL-65 | A B C D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| I-SJSL-75 | A B C D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| I-SJSL-95 | A B C D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| I-SJSL-135 | A B C D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |

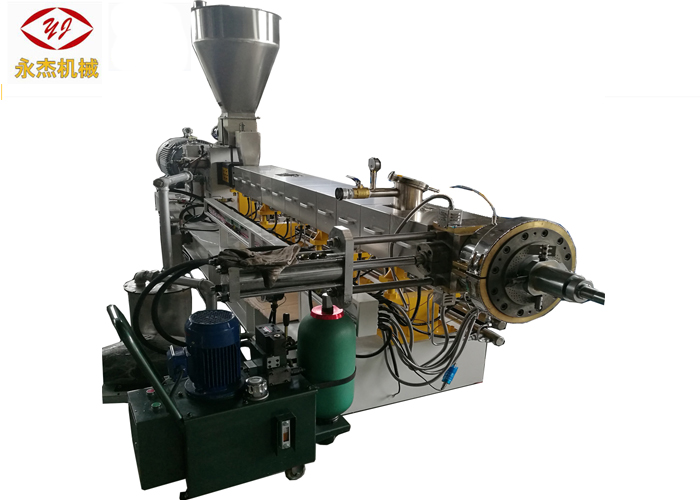

Isithombe se-SJSL75D filler masterbatch machine
Inkampani Kafushane
I-Nanjing Yongjie Qixin Machinery Equipment Co., LtdYasungulwa ngo-2001, ihlanganisa indawo engamamitha-skwele angama-20,000 emhlabeni wethu, ngokuphuma kwenyanga kwemishini engu-20sets.Imboni yethu inesitifiketi se-CE, ISO9001:2008.Inkampani igxile ocwaningweni, ekuthuthukisweni nasekukhiqizweni "kwezinga eliphezulu, elinembile, eliyinkimbinkimbi kakhulu lomkhiqizo ohambisana nokuzungeza "i-cordwood" i-twin screw extruder, i-scruder yesikulufa esisodwa, iziqhumane ezimbili zesiteji kanye imishini yepulasitiki ezenzakalelayo ye-pelletizing.Sinikeze amakhasimende imikhiqizo esezingeni lokuqala “ngetorque eqinile, ukukhiqizwa okuphezulu, ukongiwa kwamandla kanye nemikhiqizo yokuvikela imvelo.Isakhiwo esikhethekile esiklanyelwe isikulufu sifezeke ngempumelelo "ekubunjweni kwesinyathelo esisodwa" ezinhlotsheni eziningi zemikhiqizo, futhi sisetshenziswa kabanzi kupuleti eliyinhlanganisela ye-aluminium, ipuleti elinegwebu le-XPS, ipuleti le-WP, i-PP, imboni yeshidi le-PE, njll.
I-QAULITY IBEKWA EKUQALENI , futhi imboni yethu inesitifiketi sayo ISO 9001:2008 futhi CE.
